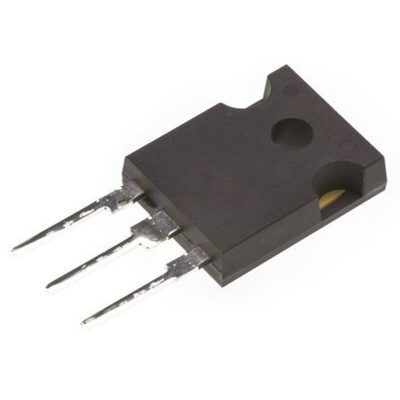

onsemi ON Semi AFGHL50T65SQDC NPN Bipolar Transistor, 100 A, 650 V, 3-Pin TO-247, Транзистор

Using novel field stop IGBT and SiC SBD technology, ON semiconductor's new series of hybrid IGBTs offer the optimum performance for hard switching application. The device co-packages a silicon-based IGBT with a SiC Schottky barrier diode, resulting in an excellent tradeoff between the lower performance of silicon-based solutions and the higher cost of entirely SiC-based solutions.

Copacked with SiC schottky barrier diode
Ultra low reverse recovery loss
Maximum Junction Temperature, Tj=175°C
Higher reliability
Very low switching and conduction losses
Positive temperature co-efficient
Tight parameter distribution
Applications
Automotive
Industrial Inverter
DC-DC Converter
PFC, Totem Pole Bridgeless
Hard Switching

Datasheet AFGHL50T65SQDC
