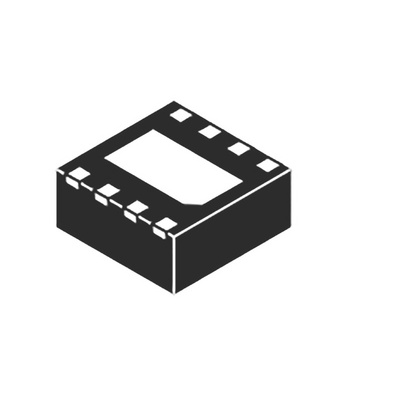

The NCV8165 is an LDO (Low Dropout Regulator) capable of supplying 500 mA output current. Designed to meet the requirements of RF and analog circuits, the NCV8165 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. Available in DFNW8 0.65P, 3 mm x 3 mm x 0.9 mm Package.
Ultra High PSRR 85dB at 1 kHz, 63dB at 100 kHz
Excellent for power sensitive device like Wi-Fi module
Ultra Low Output Noise 8.5 μVRMS
Very well suited for noise sensitive application
Ultra Low Quiescent current 12 μA
Improved efficiency during light load conditions
Operating Input Voltage Range 1.9V to 5.5V
Suitable for battery powered device
Very Low Dropout 200mV at 500mA
Low power dissipation at full load
Application
A/D and D/A Converters Power supply
Audio codec
Battery Powered Equipment
Camera module
RF Modules
WiGig Power Supply
LP5907 or LP5912 Upgrade
