FODM1009R2V, ON Semiconductor Optocouplers, Max. Forward 1.6 V, Max. Input 200 mA, 7.8mm Length, Surface Mount Mounting Style, Оптопара

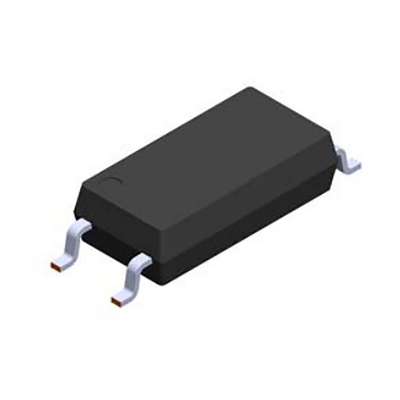

The FODM100x Series, single channel, DC sensing input, optocoupler consists of one gallium arsenide (GaAs) infrared light emitting diode optically coupled to one phototransistor, in a stretched body SOP 4-pin package. The input-output isolation voltage, VISO, is rated at 5,000 VACRMS

≥ 8 mm Creepage and Clearance Distance, and ≥ 0.4 mm Insulation Distance to Achieve Reliable and High Voltage Insulation
High Breakdown Collector to Emitter Voltage, BVCEO = 70 V minimum
Extended Industrial Temperate Range, -40 to 110°C
Current Transfer Ratio at IF = 5 mA, VCE = 5 V, TA = 25ºC
FODM1007: 80 to 160%
FODM1008: 130 to 260%
FODM1009: 200 to 400%"
Applications
Primarily suited for DC-DC Converters
For ground loop isolation, signal to noise isolation
Communications – adapters, chargers
Consumer – appliances, set top boxes
Industrial – power supplies, motor control, programmable logic control

Datasheet FODM1009R2V
