34922T-001, Keysight Technologies Data Acquisition Terminal Block for Use with 34922A Multiplexer

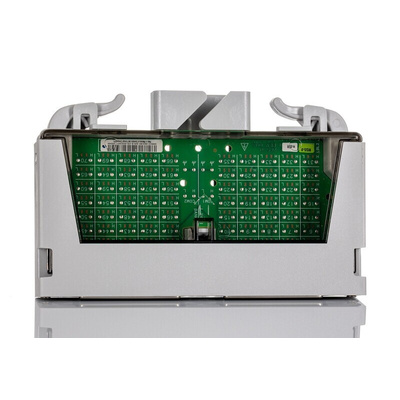

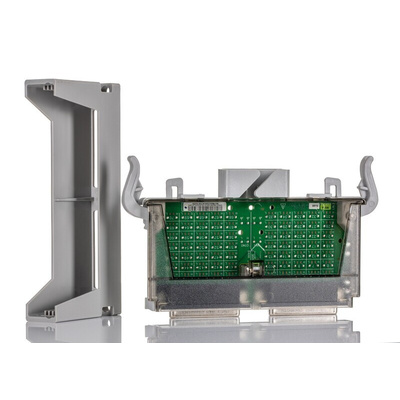

Keysight Technologies Data Acquisition Terminal Block, Strain Relief, Detachable - 34922T-001

Boost the performance of your multiplexer with this data acquisition terminal block from Keysight Technologies. It offers a simple way of connecting multiple discrete wires to your data acquisition system, so you can easily extend its testing and measurement capabilities. The flexible unit is a cinch to install or remove, which makes it ideal for semi-permanent wiring solutions. This terminal block is compatible with Keysight Technologies' 70-channel armature multiplexer (195-3127), which accommodates both 2-wire and 4-wire configurations for versatility. This helps to simplify and speed up the design validation and manufacturing of automated industrial test equipment.

• Solder terminals hold wires securely in place
• Strain relief reduces the risk of wires cracking when bent
• Compatible with wire sizes between 24 and 20AWG for versatility
• Compatible mainframe (195-3167) accommodates up to eight modules for a customised setup

Applications

• Testing and research facilities
• Aerospace engineering
• Industrial automation

The Keysight 34922T is a terminal block for the 34922A 70-channel armature multiplexer. This terminal block is used for discrete wiring. It supports up to 20 AWG wire size typical for <100 connections or 24 AWG for >100 connections. The following two terminal blocks are available to facilitate wiring connections to the 34922A module: 34922T-001 (Option 001) Terminal block with solder connectors, 34922T-002 (Option 002) Terminal block with screw connectors
The 34922T is a detachable terminal block that provides a flexible method for connecting external wiring.

How quickly does the compatible multiplexer work?

It scans up to 100 channels per second, so you can count on it for speedy and up-to-date results.

Datasheet 34922T
