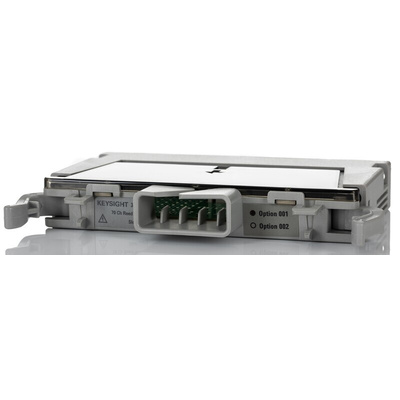

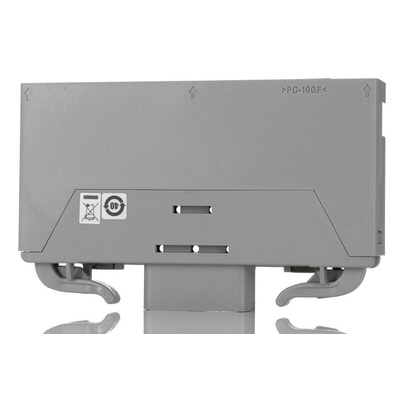

34924T-001, Keysight Technologies Data Acquisition Terminal Block for Use with 34924A Multiplexer

Keysight Technologies Terminal Block Accessory, Plastic Housing Material, For Use With 34924A Multiplexer - 34924T-001

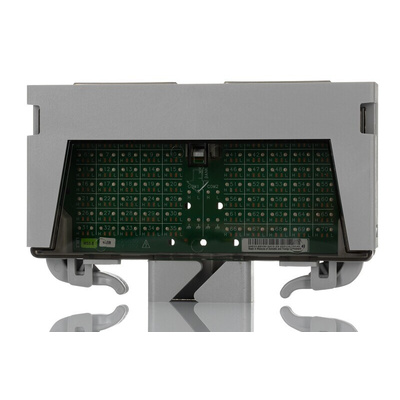

Worried about getting your wires crossed? This terminal block accessory from Keysight Technologies keeps everything in its place using discrete wiring. For ease of assembly, it goes hand in hand with the 34924A 70-channel reed multiplexer (195-3167). This multiplexer accessory lets you support lead or hook-up wires for up to 100 connections, making it a versatile piece of kit. After positioning the wires into place, snap on the transparent cover for added protection against moisture and contaminants.

Features & Benefits

• Solder termination for a secure, vibration-proof connection
• Housed in sturdy plastic for resistance to impact and wear

Applications

• Automated production
• Consumer electronics
• Telecommunications

What wire size does this terminal block support?

This connector supports 20AWG wires for less than 100 connections or 24AWG wires for more than 100 connections.

What does a data acquisition multiplexer do?

When used as part of a larger data acquisition system, a multiplexer is a device that combines multiple input channels into a single output line. It’s commonly used for high-speed testing, data logging and monitoring.
