Keysight Technologies 34980A Data Acquisition, Устройство сбора данных

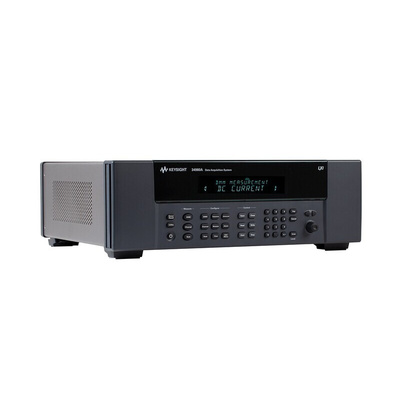

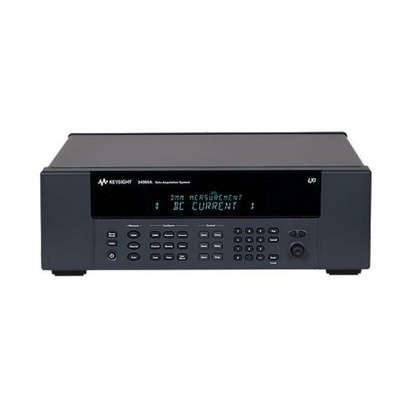

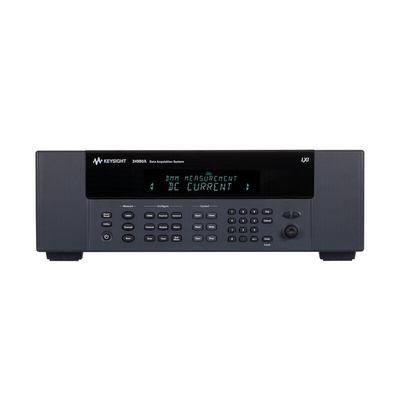

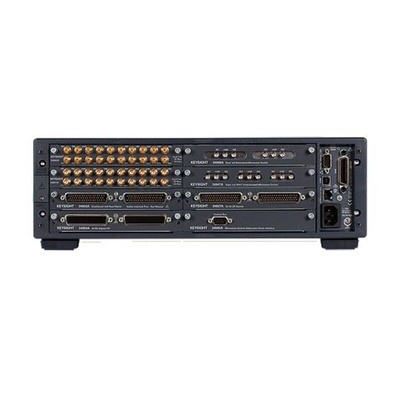

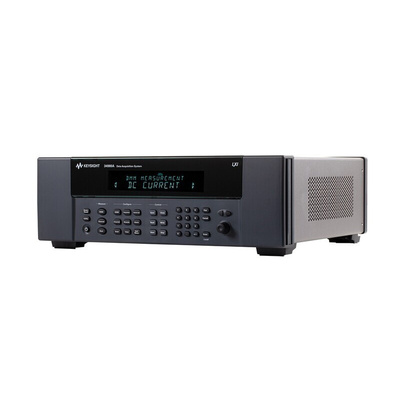

Keysight 34980A Data Acquisition System (DAS).

From Keysight Technologies this is the 34980A Data acquisition system, a multifunction switching / measuring data acquisition platform that has 21 different modules (allowing 8 plug-in modules) so you can customize your test system. This data acquisition system is easy to set-up, has a fast set-up time, plus speeds up your test-system integration and development and comes as standard with DMM option and BenchVue DAQ. You have all the features you require in one system, measuring temperature, AC / DC voltage, resistance, current, frequency and custom measurements. The 34980A Data Acquisition system is truly flexible, controlling external devices like, attenuators, microwave switches, power relays and solenoids, if you use digital inputs you can also sense limit switch and digital-bus status. You have all the performance you will need for medium to high-density switching / measurement, design verification, functional test and data acquisition.

Features and Benefits of the 34980A Data Acquisition System.

• High performance data acquisition.


• Low cost and flexible measurement platform.


• Multifunction switch / measurement.


• Fast start-up.


• Accelerated test system integration / development.


• Manage system switching up to 26.5 GHz (providing basic measurements / system control).


• DMM Measurements (built-in DMM with 6 digits (22 bits) resolution).


• Counter and totalizer function.


• Digital I/O (pattern capabilities).


• Analog outputs (basic waveforms).


• Standard connectors / software drivers (computer standard I/O, web browser interface).


• Easy integration electronic functional test and data acquisition.


• Will accommodate up to 8-Plug in modules.


• 21 Different modules available (define your own configuration).


• As needs change you can add to the 34980A (re-configure as required).


• Flexibility of choices for system control.


• Direct individual signals / monitor multiple signals over specific periods of time.


• Monitor single or multiple channels.


• Set alarms, identifying problems.


• Control external devices (microwave switches, attenuators, power relays, solenoids).


• Use digital switches sensing limit switch and digital-bus status.


• High performing signal switching to 300 V (no external signal conditioning needed).


• Select different switch types / topologies (frequency changes from DC to 26.5 GHz).


• High density multiplexers (scanning multiple channels).


• General purpose switches (simple control, high power requirements).


• Standard LAN, USB, GPIB, USB (standard USB 2.0) connectivity to your PC.


• Language SCPI-1999, IEEE-488.2.


• Remote access with built-in web interface.


• Up to 560 2-wire mux or 4096 matrix cross-points in one mainframe.


• Supplied with standard DMM option and BenchVue DAQ.

Power Requirements.

• 100 V to 240 V (+/- 10%).


• Frequency 50 to 60 Hz


• Power consumption 150 VA.

Operating Temperatures.

• 0°C to 55°C (full accuracy).


• 80% RH at 40° (full accuracy).


• IEC 60664-1 (pollution degree 1).


• Storage temperature -40°C to 70°C.

Safety Standards Met.

CSA, UL/IEC/EN 61010-1.

EMC Regulation.

IEC/EN 61326-1, CISPR 11.

What are Data Acquisition Systems (DAS) Used For?

DAS are use within industries for research and development, process control, quality control, testing and management of systems. Data Acquisitions systems can assist in improving productivity providing you the means to test various technical products plus by using the applicable DAS software you can input any form of data.

Datasheet 34980A
