Y1136A, Keysight Technologies Data Acquisition Cable for Use with Data Acquisition System

Keysight Technologies Data Acquisition Cable, D-Sub Type, 300V DC Voltage Rating - Y1136A

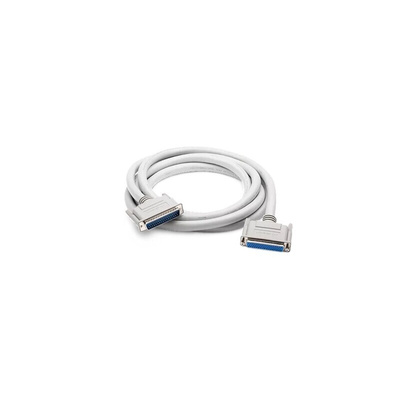

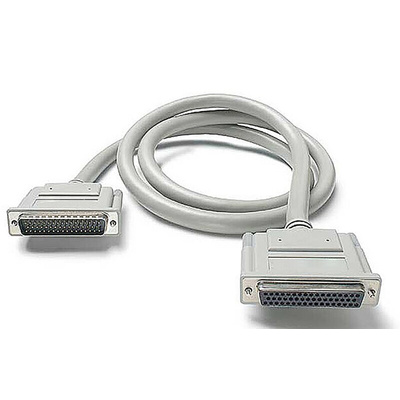

Get your monitoring and measuring setup communicating clearly with this data acquisition cable from Keysight Technologies. You can use it to put your 34980A data acquisition system (195-3167) on speaking terms with any of its compatible modules. The lead has a twisted-pair design, which minimises troublesome EMI to ensure accurate results. Thanks to its male and female 50-pin connectors, securely hooking this product up to your equipment is a piece of cake.

Features & Benefits

• Outer shielding protects cable from disruptive interference
• Voltage rating of 300V DC for use with high-power equipment
• Length of 3m for a long reach between devices

Applications

• Electrical engineering
• Automated manufacturing
• Testing and measurement equipment

How many data acquisition cables do I need to connect a module?

Most modules need only one cable, but some need two as they have multiple outputs.

How do I connect the 34980A DAQ to my PC?

You can connect the system easily using a USB cable, or via industrial Ethernet if you need remote access. For versatility, you can also connect with a standard GPIB interface.
