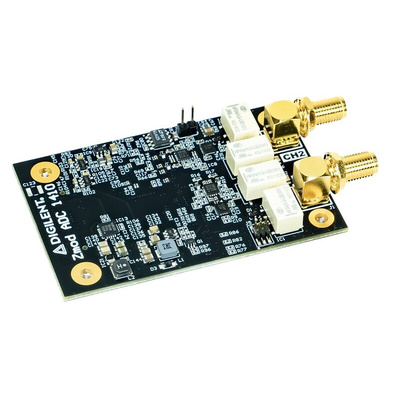

Digilent 410-396 Zmod ADC 1410 Expansion Module for Dual-Channel 14-Bit Analog-to-Digital Converter Module, Модуль

Driven by the SYZYGY carrier, the Zmod ADC can simultaneously acquire two ±25V signals with 14 bits of resolution at a sample rate up to 100MS/s. Analog inputs can be connected to a circuit using SMA cables. When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR products. By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices.

Channels: 2
Channel type: single-ended
Resolution: 14-bit
Input range: ±1V (High Gain) or ±25V (Low Gain)
Absolute Resolution 0.13mV (High Gain) or 3.21mV (Low Gain)
Sample rate (real time): 100MS/s
Input impedance: 1MΩ||18pF
Analogue bandwidth: 70 MHz+ @ 3dB, 30 MHz @ 0.5dB, 20 MHZ @ 0.1dB
Input protected to: ±50V

410-396 Datasheet
