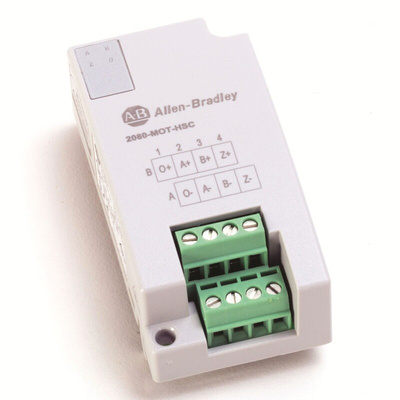

2080-MOT-HSC, Rockwell Automation Micro800 Series PLC I/O Module for Use with Micro 810 Series, Micro 830 Series, Micro 850 Series

The Micro830® controller allows easy incorporation of as many as five plug-in modules. The plug-in modules enable machine builders to personalize the controllers to increase functionality without expanding the product footprint. The new controller family also offers removable terminal blocks (most models) and communication via serial port. Transistor Output models have been enhanced with embedded motion capabilities with up to 3 axes of motion, allowing these controllers to support a wider range of applications. Connected Components Workbench software is used among the entire Micro800 family of controllers, as well as other component products, such as PanelView Component HMIs and PowerFlex drives. Based on proven Rockwell Automation and Microsoft Visual Studio technology, the new software provides controller programming, device configuration and data sharing with the HMI editor for PanelView Component operator products.

Different controller types sharing same form factor and accessories
Form factor based on number of I/O points embedded in the base: 10, 16, 24, or 48
Controllers support:
As many as six High-Speed Counter inputs (HSC)
High speed input interrupts
Embedded USB port for programming and serial port (RS232/485)
Modbus RTU protocol (serial port)
Plug-in slots to customize according to needs
Up to 88 digital I/O points in total with plug-ins on 48-pt controller
Embedded motion capabilities with up to 3 axes of motion on Transistor Output models provide
Up to three 100KHz Pulse Train Outputs (PTO)
Single axis moves supported via Motion Function Blocks
Motion instructions
TouchProbe instruction for registering position of an axis, more precise than using interrupts
Standard version of Connected Components Workbench software available as a free download
Wide range of plug-in modules allow you to change the personality of the base unit controller, up to 5 plug-ins for 48pt controller
