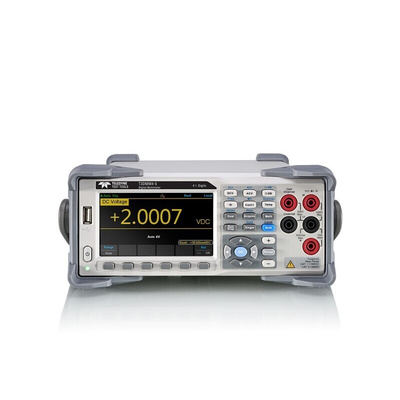

T3DMM4-5, Teledyne LeCroy T3DMM Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max, Мультиметр

Teledyne Test Tools new T3DMM series are dual display digital desktop multimeters that provide a rich and powerful feature set. The design is easy-to-use from the front-panel and computer-based control via USB or LAN. Each model is equipped with a 4.3 inch TFT-LCD true colour screen with 480 * 272 resolution for easy viewing. The T3DMM series also features numerical data display, histograms, trend charts, bar charts and statistics, in addition to the built-in arithmetic functions including Measurement statistics.

Real 4-1/2 digit (60,000 counts) readings resolution
Up to 150 rdgs/s measurement speed
True-RMS AC Voltage and AC Current measuring
1 Gb NAND flash size, Mass storage configuration files and data files
Built-in cold terminal compensation for thermocouple
Standard interface: USB Device, USB Host, LAN
DC Voltage: 600 mV ∼ 1000 V
DC Current: 600 μA ∼ 10 A
AC Voltage: True-RMS, 600 mV ∼ 750 V
AC Current: True-RMS,60 mA ∼ 10 A
2/4-Wire Resistance: 600 Ω ∼ 100 MΩ
Capacitance: 2 nF ∼ 10000 μF
Continuity Test: Rang e is fixed at 2 kΩ
Diode Test: Adjustable range is 0∼4 V.
Period Measurement: 2 μs ∼ 0.05 s
Temperature: Support for TC and RTD sensor
Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail

Datasheet T3DMM4-5
