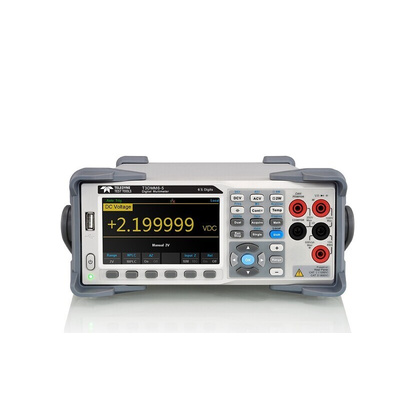

T3DMM6-5, Teledyne LeCroy T3DMM Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max, Мультиметр

Teledyne Test Tools new T3DMM series are dual display digital desktop multimeters that provide a rich and powerful feature set. The design is easy-to-use from the front-panel and computer-based control via USB or LAN. Each model is equipped with a 4.3 inch TFT-LCD true colour screen with 480 * 272 resolution for easy viewing. The T3DMM series also features numerical data display, histograms, trend charts, bar charts and statistics, in addition to the built-in arithmetic functions including Measurement statistics.

4.3” TFT-LCD, 480*272
Real 6-1/2 digits readings resolution (2,200,000 counts)
True-RMS AC Voltage and AC Current measuring
File management (support for U-disc and local storage)
Built-in cold terminal compensation for thermocouple
Standard interfaces: USB Device, USB Host, LAN
Built-in Help system makes information acquisition easier
Support remote control operation via SCPI commands.
Supports intelligent management system for laboratory based on BS framework and LAN.
DC Voltage: 200 mV - 1000 V
DC Current: 200 μA - 10 A
AC Voltage: True-RMS, 200 mV - 750 V
AC Current: True-RMS, 200 μA - 10 A
2/4-Wire Resistance: 200Ω - 100 MΩ
Capacitance: 2 nF - 100 mF
Diode Test: Adjustable range is 0 - 4V.
Frequency Measurement: 3 Hz - 1 MHz
Period Measurement: 1 μs - 333.33 ms
Temperature: Support for TC and RTD sensors

Datasheet T3DMM6-5
