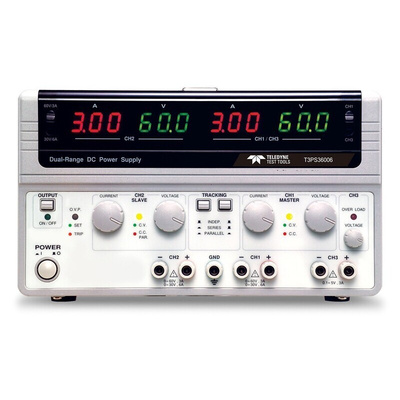

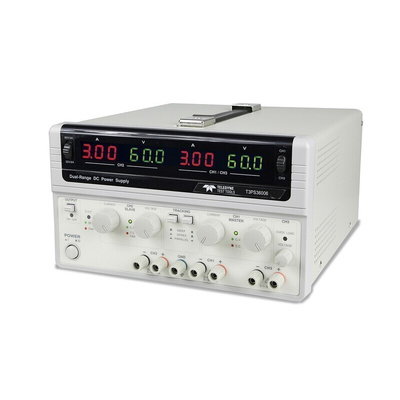

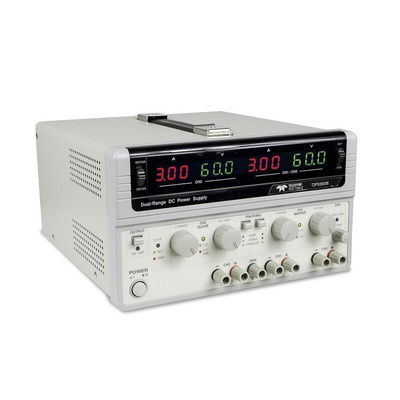

T3PS36006, Teledyne LeCroy T3PS Series Digital Bench Power Supply, 0.1 → 5V, 0 → 3A, 3-Output, 375W, Блок питания

The T3PS36006 DC power supply provides 375 W output capacity, three isolated outputs with dual-range for CH1 & CH2, highly efficient power conversion, low noise, high reliability, thorough protection, excellent value and a compact size. T3PS36006 creates a new bench mark for satisfying mainstream power supply demands. CH1 & CH2 offer dual-range output either at 30 V / 6 A or 60 V / 3 A per channel to accommodate a wide range of applications.

T3PS36006 supports series and parallel tracking, allowing the CH1 and CH2 to be internally connected in series or parallel providing flexible output (30 V / 12 A, 60 V / 6 A, or 120 V / 3 A). High power density and high power conversion efficiency lets T3PS36006 consume less energy making for a greener power supply. In addition, the high power density makes T3PS36006 weigh less than half and occupy much less space compared to linear power supplies. To avoid damage caused by improper operation, it also has OVP and OTP. The dual range AC input accepts both 115 V and 230 V inputs. When the instrument is on, devices can be connected and voltage/current levels can be adjusted safely from the front panel by turning off the output using the Output on/off key. The optional voltage/current protection knobs can be used to prevent accidentally changing the output levels. These knobs are useful for automated testing at fixed output levels, such as in assembly lines or product inspections.

Three independent isolated outputs.
Flexible output configurations of Ch1 and Ch2
Independent Mode: 2 x 0-30V / 0-6A or 0-60V / 0-3A.
Series Mode: 0-6A / 0-60V or 0-120V / 0-3A.
Parallel Mode: 0-30V / 0-12A or 0-60V / 0-6A.
375 Watt high power density switching DC power supply design.
Main outputs support Constant Voltage or Constant Current operation.
Third output offers 0.1 - 5 V / 0 - 3 A.
Temperature controlled fan for quiet operation.
Remote on / off control of the output (not programmable)

T3PS36006 - Datasheet
