2900398, Phoenix Contact PLC-OPT Series Solid State Interface Relay, 28.8 V dc Control, 10 A Load, DIN Rail Mount, Реле

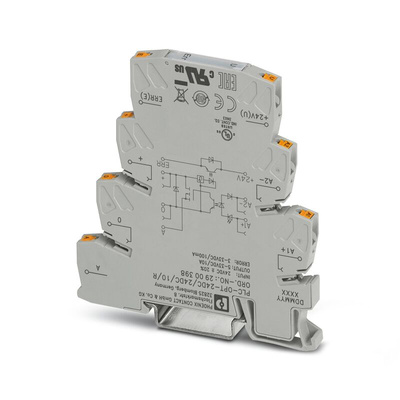

Phoenix Contact Solid State Relay Module, DIN Rail, SPNO - PLC-OPT-24DC/24DC/10/R - 2900398

This solid-state relay module from Phoenix Contact is a safe, effective way to control a load circuit remotely. You can be fit it between two isolated components and use it to automatically switch a circuit on or off when a set voltage is applied.
The module is designed for use on standard DIN rails, letting you mount it onto your circuit board quickly and easily. It has no mechanical parts, so it's durable and resistant to impact, for improved reliability.
This component has a broad operating temperature range of -25°C to +60°C, which makes it suitable for use in demanding environments. It won't produce sparks, so it's safe to install where there is a risk of explosion. You can use it in thermostats, industrial automation applications and instrumentation systems.

• Dimensions of 6.2 (width) x 80 (height) x 94 mm (depth)
• Maximum control voltage of 28.8 V DC
• Minimum control voltage of 19.2 V DC
• Maximum load current of 10 A
• Maximum load voltage of 33 V DC
• Minimum load voltage of 5 V DC
• Maximum turn-on time of 1 ms
