RS PRO 45cm DB 9 to USB

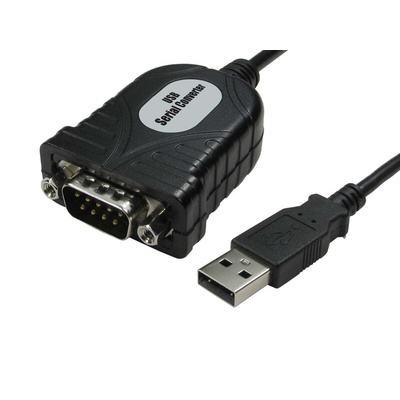

RS PRO USB to Serial Adapter Cable Assembly

Introducing the RS PRO USB to Serial Adapter Cable Assembly, designed with the popular Prolific PL-2303 HX Revision D chipset, which allows Windows to install it the first time that the cable is connected to a PC, offering ultimate convenience without installation downtime. The computer cable adapter has an ultra-durable ABS shell on the DB 9-way male connection and a 45 cm PVC cable flex with a USB A male connector. Thanks to the chipset technology, the cable also has a transfer rate of up to 500 Kbps designed for optimum performance. This RS PRO serial to USB adapter can be used to connect serial devices to PC’s which only have a USB port, provided greater flexibility and versatility for the user.

Features and Benefits:

• This RS PRO serial to USB adapter has a DB 9-way male connection and USB A male connector which allows the connection of serial devices to PC’s that only have a USB port


• The cable assembly has a high-speed 500 Kbps transfer rate and is compliant with the USB 1.1 specification


• The easy to install Prolific PL-2303 HX Revision D chipset offers a plug and play feature, saving valuable time and effort


• Host Interface: USB BUS


• Windows 10, 8 and 7 compatible


• USB host device drivers supplied


• Supplied with USB serial adapter, driver CD and quick installation guide

Applications:

Serial Cable Adapters are units that offer flexibility and versatility as an add on to devices, like PC’s or laptops that may not have built-in connectivity capabilities, and therefore limits the user in what they are able to connect to their device. It gives users the capability to use the adapter with varying connection interfaces, often with easy to use and plug and play features. These adapters are often designed for connections through USB ports, however, other connectors are also available depending on where the adapter is being used. They will most often be used to connect devices like:

• Cellular Phones


• PDAs


• Digital Cameras


• Modems


• ISDN Terminal Adapters

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
