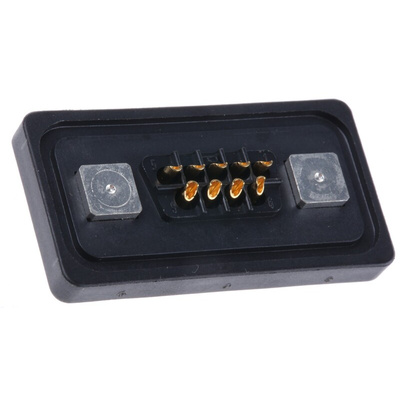

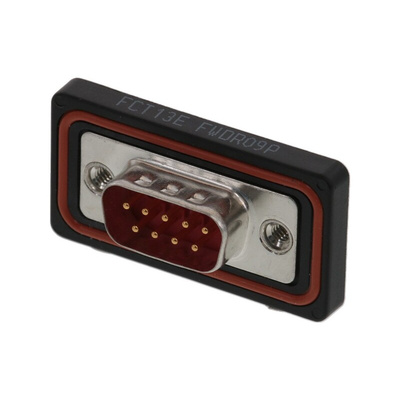

FWDR09P / 1731100004, FCT from Molex FWD 9 Way Panel Mount D-sub Connector Plug, 2.84mm Pitch, Разъем

Back panel D-connector, solder tag

These waterproof back panel D-connectors and jacks meet protection rating IP67 and use an O-ring seal to minimise the extent to which the plug connection protrudes from the panel.

FCT from Molex D-Sub Connector, 5A Current Rating, 40mm Length - FWD Series - FWDR09P / 1731100004

Looking for a device that provides strain relief for your wiring setup? Choose this FCT from Molex male D-sub connector. A 5A current rating makes it an ideal choice for use in low-powered systems. As the E-sized shell houses nine contacts in a compact unit of 40 (length) x 21mm (width), this is a space-saving choice. The straight body orientation and panel mounting style make installation simple, while solder termination ensures a durable connection.

• Copper alloy contact material with gold-over-nickel plating for high conductivity and low resistance
• IP67 rating means it's dust-tight and resistant to immersion in 1m of water for up to 30 minutes, so suited to demanding conditions

Applications

• Automotive industry
• Electrical services

Can I use this D-sub connector in hot places?

Yes. The unit has a wide operating temperature range between -25°C and +70°C, so it's suitable for use in harsh environments.

Waterproof (IP67) 'D'

Suitable for military, industrial or commercial applications and computer interfacing etc.

FWD-Series Connectors

Produkt-Information

Waterproof D-Sub Connectors, detailed
