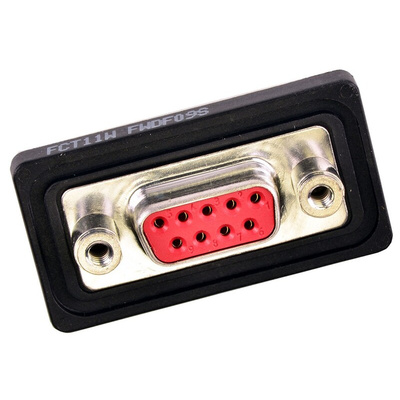

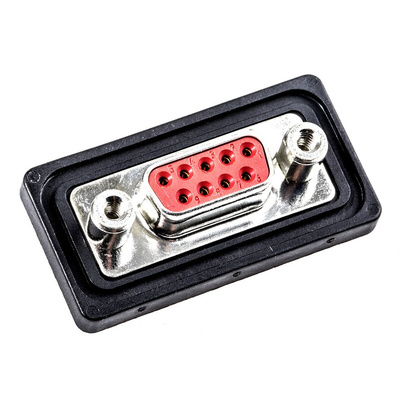

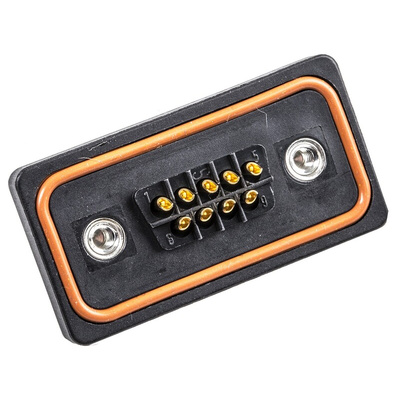

FWDF09S / 1731100021, FCT from Molex FWD 9 Way Panel Mount D-sub Connector Socket, 2.84mm Pitch

IP67 Front Panel Mount Sockets

FCT from MolexD-Sub Connector, 9 Way, 5A Current rating - FWD Series - FWDF09S / 1731100021

Create a secure connection on your computer circuit board with this D-sub connector from FCT from Molex. It transmits digital signals across the 9 contacts with a current rating of 5A for use with low-level currents. The connector is a waterproof type and is compatible with marine applications and damp or humid industrial environments. Its D-shaped metal shield protects the contact pins from impact damage and contaminants. The connector has screw terminals to fix it in place and protect against industrial vibration.

• Copper alloy contact material helps maintain high conductivity
• Gold over nickel contact plating protects against corrosion wear
• Operating temperature range between -25°C and +70°C for use in extreme conditions
• IP67 (ingress protection) rating certifies the unit is dust-tight and withstands water submersion at 1m for up to 30 minutes

Applications

• Surveillance systems
• Security technology
• Commercial aviation
• Telecommunications equipment

How do I secure this D-sub connector to wires?

You can secure the connector to wires using the standard solder method. The soldering alloy fuses the contacts to the connecter to keep them fixed tightly together and prevent dislodging.

Waterproof (IP67) 'D'

Suitable for military, industrial or commercial applications and computer interfacing etc.

FWD-Series Connectors

Produkt-Information

Waterproof D-Sub Connectors, detailed

Datasheet
