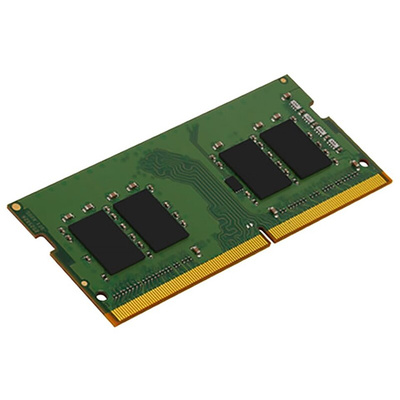

KVR32S22S6/4, Kingston 4 GB DDR4 RAM, 3200MHz, SODIMM, 1.2V

The Kingston Value RAM’s KVR32S22S6/4 as a 512M x 64-bit (4GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers

Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
8 internal banks, 2 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.18” (30.00mm)
Halogen-Free

Datasheet KVR32S22S6/4
