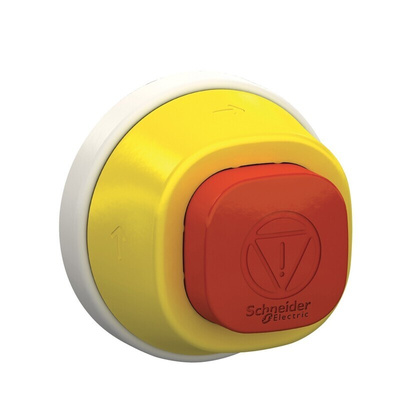

ZB5AS84W2G, Schneider Electric ZB5 Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22mm Cutout

Schneider Electric Round Head Illuminated E-Stop - Turn to Release, 22mm, 120V, ZB5AS84W2G

Enhance your emergency stop system and experience optimal control, efficiency and accessibility with the 120V emergency stop push-button ZB5AS84W2G by Schneider Electric.

The 22mm 120V emergency stop push-button ZB5AS84W2G is LED illuminated to maximise visibility of your emergency stop safety system. Once pressed, it can be conveniently released by turning it. It has a modern and simplified design with its round head and square button, and the bezel material is made of resilient plastic. This push-button is largely used as an emergency stop function for machines and on control panels, providing an instant and safe shutdown in emergency situations.

The ZB5AS84W2G is water-tight and dust-tight with IP ratings of IP66, IP67, IP69, IP69K, which ensures that it is ideal for use in harsh industrial environments. Contacts are designed to prevent vibration, helping to ensure secure mounting and wiring. The red button and consistent LED illumination guarantee improved visibility and accessibility for operators. This push-button allows for excellent ease-of-use with its ergonomic design and will modernise the appearance of your control panels and machines.

The Harmony series of push-buttons and push-button accessories by Schneider Electric combines affordability with high-quality to provide you with the perfect solution to any application.

Features and Benefits

The ZB5AS84W2G 120V push-button is turn-to-release for simple operation and the bright LED illumination ensures flawless visibility even in poorly lit conditions. It is highly resilient to harsh environments, ensuring greater longevity and reliability for your emergency stop function. It features a sleek and modern design to provide easy access.

• Mechanical Durability: 300,000 cycles
• Type of operator: Trigger action and mechanical latching
• Temperature operating range: -40…70 °C
• Illuminated
• Marking: Unmarked
• Supply Voltage Limits: 100…132 V DC
• Toxic heavy metal free and mercury free
• Overvoltage category: Class II conforming to IEC 60536

Certifications

UL, CSA, EAC

What does an emergency stop push-button do?

An emergency stop push button or E-Stop is a fail-safe control switch that provides both safety for the machinery and for the person using the machinery. The purpose of the emergency pushbutton is to stop the machinery quickly when there is a risk of injury or the workflow requires stopping.

What are the different types of emergency stop?

The three most common emergency stops are:
• Push-pull: The button is pushed in to stop and released by pulling the button back
• Twist release: The button is pushed in to stop and released by twisting the button
• Key release: The button is pushed in to stop and only released with a key

Datasheet ZB5AS84W2G
