XALK84W3BE, Schneider Electric XALK Series Twist Release Illuminated Emergency Stop Push Button, Surface Mount, SPDT

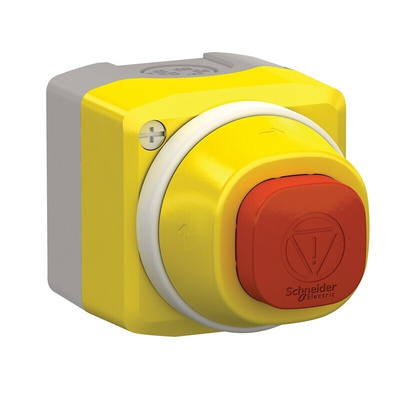

Schneider Electric Illuminated Emergency Stop Control Box, 24V, Turn to Release, XALK84W3BE

Take safety to a new level in your workplace with the Illuminated Emergency Stop Control Box XALK84W3BE by Schneider Electric.

This 24V complete control station features a mushroom head push-button with convenient turn-to release operation. The button and control box are made of robust polycarbonate for durability. This complete control station is primarily used to provide an emergency switching off function on machines and control panels, making it highly suitable for use in commercial and industrial sectors. The XALK84W3BE is LED illuminated for enhanced visibility, even in poorly lit conditions. When the push-button is pressed the light will change to red to indicate the activation of the emergency stop process.

The modern, ergonomic design of the XALK84W3BE ensures that your control panel or machine will look and feel smoother to operate. It has IP ratings of IP66, IP67, IP69, IP69K, meaning that it is dust-tight and resistant to powerful jets of water, making it ideal for use in harsh environments.

The Harmony range of high-quality, affordable push-buttons and push-button accessories by Schneider Electric is designed to improve control and accessibility for your emergency stop safety system and ensure maximum efficiency and protection in your workplace.

Features and Benefits

The XALK84W3BE is LED illuminated for optimal visibility at all times, guaranteeing that it is easily accessible for operators during an emergency. The modernised, simplified design of the box and mushroom head push-button and smooth turn-to-release function enables easy operation. Comprised of a resilient polycarbonate material, this station is ideal for long-term use in harsh industrial environments.

• It is compatible with the Harmony XB5 range of control and signalling units, providing a wide choice of circular and square heads.
• Operators Description: Red unmarked 1 NO + 1 NC
• Control Station Composition: 1 mushroom head push-button, red 1 NO + 1 NC
• Contact Operation: Slow-break
• Cable Entry: 1 knock-out for cable entry 0…14mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0…12mm
• Mechanical Durability: 300,000 cycles
• Operating Force: 44N
• Operating Travel: 1.5mm (NC changing electrical state), 4.3mm (total travel)
• Connections – terminals: Screw Clamp Terminals
• Contacts Material: Silver Alloy (Ag/Ni)
• [Ui] rated insulation voltage: 600 V (pollution degree 3) conforming to EN/IEC 60947-1
• Operating Temperature: -40…70°C
• Mercury Free

Certifications

UL Listed, CSA

What does an emergency stop push-button do?

An emergency stop push button or E-Stop is a fail-safe control switch that provides both safety for the machinery and for the person using the machinery. The purpose of the emergency pushbutton is to stop the machinery quickly when there is a risk of injury or the workflow requires stopping.

What are the different types of emergency stop?

Push-pull: The button is pushed in to stop and released by pulling the button back
• Twist release: The button is pushed in to stop and released by twisting the button
• Key release: The button is pushed in to stop and only released with a key
