The FPF2895V features a 28 V and 5 A rated current limit power switch, which offers Over−Current Protection (OCP), Over−Voltage Protection (OVP), and True Reverse Current Block (TRCB) to protect system. It has low On−resistance of typical 27 m with WL−CSP can operate over an input voltage range of 4 V to 22 V.
The FPF2895V supports ±10% of current limit accuracy, over-current range of 500 mA to 2 A and ±5% of current limit accuracy, over−current range of 2 A to 5 A , flexible operations such as selectable OVP, selectable ON polarity and selectable OCP behavior, which can be optimized according to system requirements.

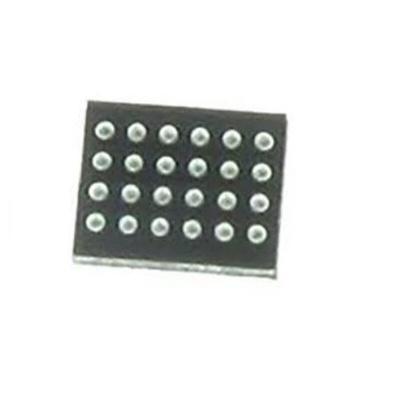

The FPF2895V is available in a 24−bump, 1.67 mm x 2.60 mm Wafer−Level Chip−Scale Package (WL-CSP) with 0.4 mm pitch.
