RS PRO Data Cable, 0.14 mm², Screened, 50m, Grey PVC Sheath, 26 AWG

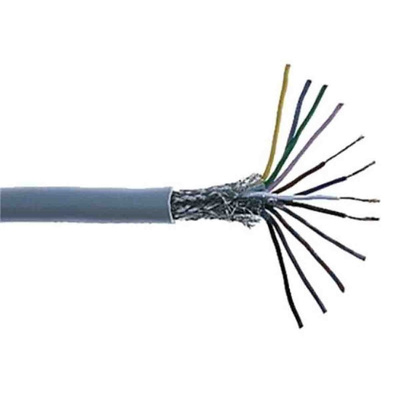

RS PRO 14 Core CY Control Cable

Introducing the RS PRO 14 core copper CY cable, ideal for use in environments where interference-free transmissions are required. The screened flexible CY cable combines the characteristics of a flexible mains cable along with small cable diameters to save valuable space and making it suitable for fixed and flexible installations across a wide variety of applications.

Features and Benefits:

• This RS PRO CY cable is a screened cable that is ideal for space-saving installations or indoor use where mechanical stresses are present


• It is a flexible control cable with a durable grey PVC protective sheath and stranded bare copper conductors


• The cable offers good insulation due to the PVC insulation material and resistance to oil and water mixes when indoors


• Operating temperatures of -5°C to +80 °C


• Conductor resistance (20℃ Ω/km): 130 max.


• Operating voltage: 250 V


• Overall diameter: 7.5 mm

Applications:

CY control cables are a versatile type of cable that can be used across a wide variety of applications where free movement is limited with low tensile stress. The flexible nature of the control cable means that it is a reliable cable, especially when accurate and interference-free transmissions are needed. Due to their nature and construction, they can often be used in more extreme environments, for example where dry or damp conditions are prevalent and can also be used outdoors, as long as UV-protection is installed too. CY cables can be found in various places, for example:

• Electronic control equipment


• Weight scales


• Control and signal lines for assembly and production lines, computer units and conveyors

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
