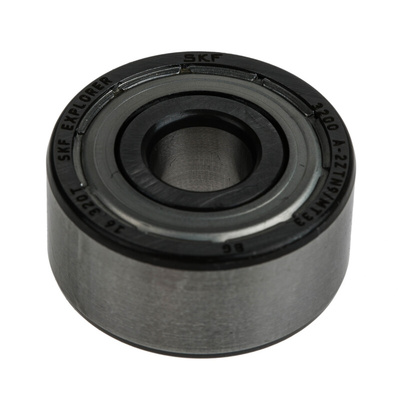

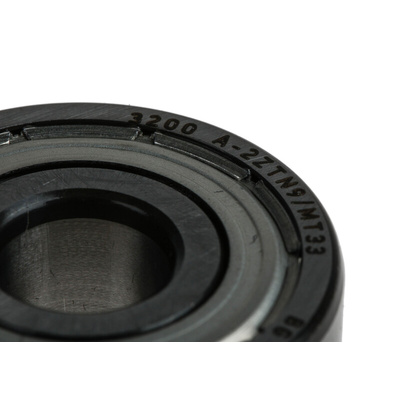

SKF 3200 A-2ZTN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Shielded 10mm I.D, 30mm O.D, Шарикоподшипник

SKF Angular-Contact Ball Bearing, 10mm ID, 30mm OD - 3200 A-2ZTN9/MT33

This angular-contact ball bearing from SKF distributes both radial and axial loads in different directions. A double-layer shield makes it easy to mount on a shaft without disturbing the internal components. As it comes with two sets of rolling elements, it's rigid and can accommodate tilting movements. You can use it in applications where mounting two single-row bearings would take up too much axial space. Thanks to the angular-contact design, an increase in contact angles will boost this unit's axial-load-carrying capability.

• Rigid glass fibre reinforced PA66 (polyamide 66) cage to keep balls secure against vibration
• Plain race design for smooth contact of roller elements
• Tough steel body is resistant to impact and corrosion for long-lasting use
• Can be relubricated to minimise friction

Applications

• Wind turbines
• Industrial pumps
• Automotive industry
• Conveyor systems

What's the difference between this double-row ball bearing and a single-ball bearing?

Apart from the difference in the number of rows, this double-row bearing is more rigid and able to accommodate tilting. A single-row bearing has a compact and lightweight structure, making it suitable for high-speed rotation.

Datasheet

SKF Bearing Designations

Catalogue - Rolling Bearing

Manual - SKF Coatings

Specification Sheet - 1959525
