SKF 3201 A-2ZTN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Shielded 12mm I.D, 32mm O.D, Шарикоподшипник

SKF Angular-Contact Ball Bearing, 12mm ID, 32mm OD - 3201 A-2ZTN9/MT33

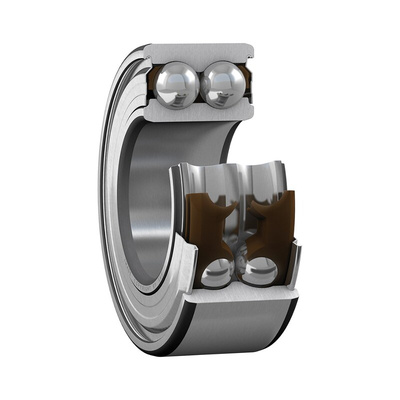

Balance both axial and radial loads in your rotating industrial machinery using this angular-contact bearing from SKF. The unit has two sets of rolling elements arranged side by side in plain raceways, so it delivers reliably smooth movement. The balls are held securely by a cage to withstand vibrations in demanding conditions. An angular design allows the unit to be used at higher contact angles, increasing its axial-load-carrying capacity. Double shielding stops contaminants from getting into the workings, making this a safe choice in hygiene-critical environments like food-processing plants.

• Steel housing is corrosion-resistant for an extended service life
• Cage made from thermal-resistant glass-fibre-reinforced PA66 (polyamide 66) withstands extreme temperatures
• Reference speed of 24,000r/min (rotations per minute) for use in high-speed applications
• Compact 12mm inside diameter and 32mm outside diameter dimensions to fit onto small shafts

Applications

• Food and beverage production
• Electric motors
• Agricultural equipment

Is this ball bearing lubricated?

Yes, it is. This bearing comes pre-lubricated to ensure the smooth operation of all its internal components. During maintenance, you can top up the grease as necessary.
