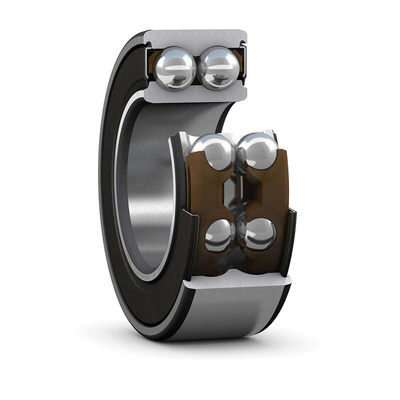

SKF 3304 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 20mm I.D, 52mm O.D, Шарикоподшипник

SKF Plain Angular Contact Ball Bearing, 20 mm ID - 3304 A-2RS1TN9/MT33

For applications that experience radial and axial loads at the same time, choose these double-row angular contact ball bearings from SKF. They're engineered to minimise noise and vibration in high-speed and high-precision applications. This ball bearing comes pre-greased for low-maintenance lifetime use. Sealed ends keep dust and other particles out, improving performance and lengthening service life. Advanced raceways ensure quiet and cool running, while optimal inner geometry handles larger tilting moments.

• Dynamic load rating of 24.5 kN
• Static load rating of 15.6 kN
• Inner diameter of 20 mm
• Outer diameter of 52 mm
• Plain race type
• Parallel bore type
• Race width of 22.2 mm

Application Information

• Energy and utility industries
• Automotive industry
• Chemical processing

SKF 20MM DOUBLE ROW ANGULAR CONTACT BALL

What grease is used in this double-row angular contact ball bearing?

This ball bearing comes pre-greased with MT33 lubricant from SKF. It's a general-purpose lubricant that's mineral-oil-based and has a lithium soap thickener.

What seal is used in this double-row angular contact ball bearing?

This ball bearing uses NBR (nitrile rubber) contact seals on both sides. These protect the bearing from dust getting in and are resistant to oils and corrosion.

Datasheet

SKF Bearing Designations
