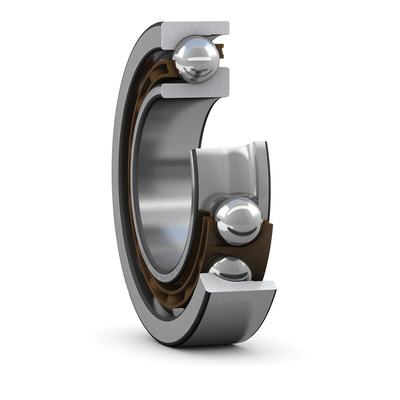

SKF 7204 BECBP Single Row Angular Contact Ball Bearing- Open Type 20mm I.D, 47mm O.D, Шарикоподшипник

SKF Ball Bearing, Angular Contact Bearing Type, Plain Race, 20mm ID, 47mm OD - 7204 BECBP

Looking for a bearing that's a cool operator? Use this plain-race angular contact ball bearing from SKF. Its optimised design means operating heat is minimised, even at high rotational speeds, so you benefit from an extended service life. You can be sure your pre-defined clearance or preload will stay constant over time, thanks to the unit's unique heat treatment that provides maximum hardness and resistance to wear. Superior quality rolling elements ensure spot-on running accuracy, which means low noise generation and vibration. This bearing doesn't stress about axial overloading, as the ground transition between its raceway and shoulder cuts down on contact and edge pressure.

Features & Benefits

• High dynamic load carrying capacity of up to 14.3kN for heavy-duty tasks
• Efficient use of lubrication, so there's less need for regular greasing
• Increases machine uptime, for plant efficiency
• Comes pre-greased, making it conveniently ready for immediate use

Applications

• Screw compressors
• Grinding machines
• High-speed turbochargers
• Machine tool spindles

What material is this ball bearing made from?

This ball bearing is made from clean homogenised steel, for superior performance in demanding or contaminated operating conditions.

Datasheet

SKF Bearing Designations
