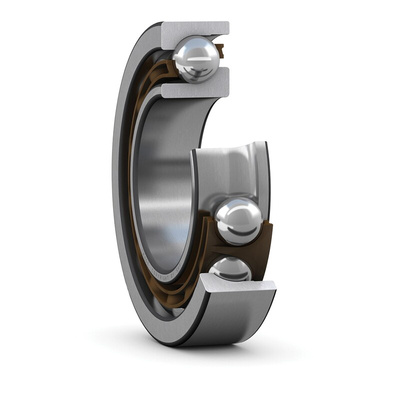

SKF 7209 BECBP Single Row Angular Contact Ball Bearing- Open Type 45mm I.D, 85mm O.D, Шарикоподшипник

SKF Ball Bearing, Plain-Race, Angular-Contact, 45mm ID, 85mm OD - 7209 BECBP

This versatile plain-race angular-contact ball bearing from SKF supports radial and axial loads simultaneously. A 40° contact angle means it works efficiently at high speeds. As it's made from corrosion-resistant steel, you can use it safely in humid industrial conditions. Thanks to the non-stop contact of the balls with both ring raceways, this bearing operates comfortably at 9500r/min and can manage both rapid accelerations and decelerations. You can use it with a second angular-contact ball bearing to handle single-direction axial loading in motors.

• Static load rating of 28.5kN and dynamic load rating of 38kN for heavy-duty use
• Dimensionally interchangeable with ISO standard components so you can easily upgrade your setup

Applications

• Water treatment plants
• Manufacturing facilities
• Wind energy industry
• Agricultural machinery
• Automotive workshops

What's the difference between angular-contact ball bearings and deep-groove ball bearings?

Angular-contact ball bearings have inner and outer races that support loads from a specific angle depending on the perpendicular axis. Deep-groove bearings can only support loads that are perpendicular to the bearing axis.

When should I use angular-contact bearings?

Angular-contact bearings are used in machines that need to hold shafts at a certain angle with high accuracy and durability.
