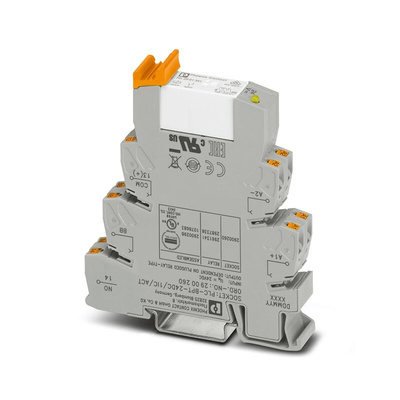

Phoenix Contact PLC Interface Relay Module, Push-In Terminal, SPNO - PLC-RPT24DC/1IC/ACT - 2900298
Use this PLC (programmable logic controller) interface relay from Phoenix Contact for applications that need high switch-on currents. It has a maximum inrush current of 130 A and is suitable for DIN-rail mounting.
The miniature relay is extremely compact, so it enhances your system's efficiency and maximises packing space on a circuit board. Its system cabling adapter enables quick, error-free connection of the relay module to the controller. Push-in connection technology makes wiring easy – simply insert conductors with your fingers.
The isolation between this component's coil and contact makes it safe to use in power installation applications. It's also protected against the elements as it has an IP67 (ingress protection) rating, meaning it's dust-tight and water-resistant.
• Coil voltage of 24 V DC
• Maximum input voltage of 24 V DC
• Life of 3 x 10^7 mechanical cycles
• Switching current of 100 mA
• SPNO (single pole, normally open) contact configuration
• Silver alloy contact material
• Turn-off time of 10 ms
• Turn-on time of 8 ms
• Dimensions of 80 (length) x 6.2 (depth) x 94 mm (height)
• Operating temperature range of -40°C to +60°C
