2900346, Phoenix Contact PLC-RPT24UC/21-21/RW Series Interface Relay, DIN Rail Mount, 12V dc Coil, DPDT, 2-Pole

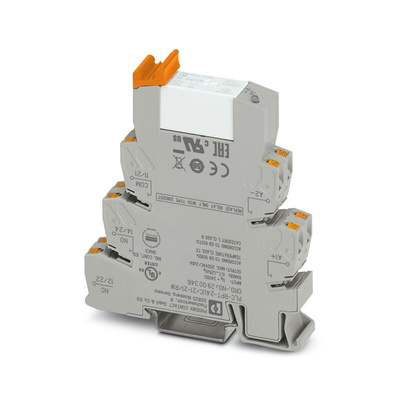

Phoenix Contact Interface Relay Module, DIN Rail, DPDT - PLC-RPT- 24UC/21-21/RW - 2900346

This PLC (programmable logic controller) relay module from Phoenix Contact offers optimal signal conditioning operation. It's made from a single metal stamp circuit and doesn't use any soldering points. This helps achieve stable operations without the risk of damage due to corrosion.
The silver-alloy contact material ensures good conductivity and reliable switching. The unit is configured as a DPDT (double pole, double throw) switch, which means a maximum of two connections can remain on at a time. A life of 30 million cycles means this module is a durable and long-lasting choice.
Thanks to the compact design, the unit is quick to install in your control cabinet. It provides high resistance to vibration and shock, making it suitable for heavy-duty applications in demanding environments such as railways.

• Coil voltage of 12 V DC
• Input voltage range of 0.7 to 1.25 V
• Maximum input voltage of 24 V DC
• Operating temperature range of -40°C to +70°C
• Turn-off time of 11 ms
• Turn-on time of 5 ms
• Dimensions of 80 (length) x 14 (depth) x 94 mm (height)
