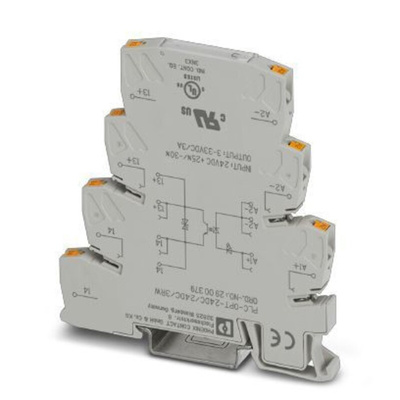

2900379, Phoenix Contact PLC-OPT24DC Series Solid State Interface Relay, 1.25 V Control, DIN Rail Mount

Phoenix Contact Solid State Interface Relay, 4kV Rated Surge Voltage, 0.2W Maximum Power Dissipation - PLC-OPT- 24DC/ 24DC/3RW - 2900379

Monitor and control circuits in your industrial equipment with this solid state interface relay from Phoenix Contact. It's a semiconductor-based switching device, which means it has no moving parts, reducing the risk of mechanical wear and supporting a longer operational life. This construction also makes the unit suitable for the control of electrical loads. The thermoplastic housing provides impact protection, making this a practical option for use in harsh environments.
As the relay has a surge voltage rating of up to 4kV, it can withstand high-voltage surges to ensure safe operation. A reverse-polarity protection circuit prevents damage resulting from incorrect connections. Thanks to a narrow width of 6.2mm, you can easily install this device in setups with limited space. You'll find it commonly used in the transportation industry.

Features & Benefits

• DIN-rail mounting style for tool-free installation that saves time and effort
• Push-in connection terminals for simple conductor linkage
• Quick response time of 40μs for timely reaction to faults
• Yellow LED indicator makes voltage status monitoring easy
• UL recognised for safe use in Division2/Zone2 environments
