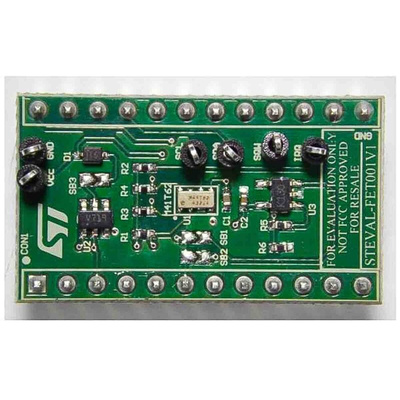

STMicroelectronics STEVAL-FET001V1 Adapter for use with Standard DIL 24 Socket

The STEVAL-FET001V1 is an adapter board for the evaluation of the M41T62LC6F low-power serial real-time clock (RTC) with alarm. The board offers an effective solution for fast system prototyping and device evaluation directly inside your application. The STEVAL-FET001V1 can be plugged into a standard DIL 24 socket.
The adapter provides the complete M41T62LC6F pinout and comes ready-to-use with the required diode and capacitor for stand-by operation when the main supply is absent. The square wave and interrupt pins are also easily accessible thanks to dedicated test points.

Complete M41T62LC6F pinout (I²C interface) for a standard DIL 24 socket

STEVAL-FET001V1 Datasheet
