STEVAL-IFP034V1, STMicroelectronics Evaluation Board for IPS161H for Analyze the IPS161H Device Functionality

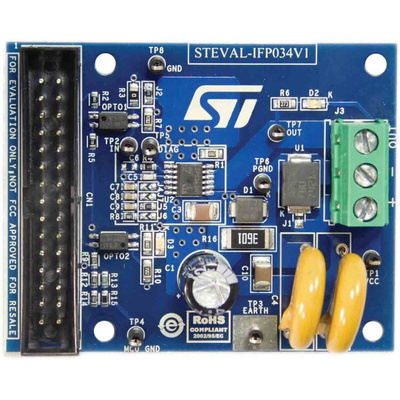

The STEVAL-IFP034V1 evaluation board is designed to analyze the IPS161H device functionality. It provides galvanic isolation between the user interface and the power interface through optical isolation implemented with optocouplers OPTO1 for forward signals to the device and OPT2 for diagnostic feedback signals.
A dedicated GUI interface helps you test IPS161H functionality. To use it, ensure the STEVAL-IFP034V1 is connected via a 30-way flat cable to a STEVAL-PCC009V2, which is connected via USB to the PC running the GUI.

Operating voltage range: 8 to 60 V
Operating current: 0.5 A max
Programmable cut-off delay time
Reverse polarity protection
Galvanic isolation on PCB
Input pins compatible with VCC rails
Green LED for channel ON/OFF status
Red LED for Common Diagnostics on:
open load in OFF state
cut-off
thermal protection
Microcontroller interface

STEVAL-IFP034V1 Datasheet
