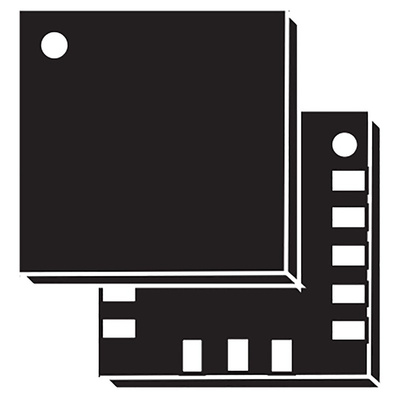

H3LIS331DLTR, STMicroelectronics 3-Axis Surface Mount Accelerometer, TFLGA, I2C, SPI, 16-Pin, Акселерометр

The H3LIS331DL is a low-power high-performance 3-axis linear accelerometer belonging to the “nano” family, with digital I2C/SPI serial interface standard output. The device features ultra-low power operational modes that allow advanced power saving and smart sleep-to-wakeup functions. The H3LIS331DL has dynamically user-selectable full scales of ±100g/±200g/±400g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz. The H3LIS331DL is available in a small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

Wide supply voltage, 2.16 V to 3.6 V
Low-voltage compatible IOs, 1.8 V
Ultra-low power consumption down to 10 μA in low-power mode
±100g/±200g/±400g dynamically selectable full scales
I2C/SPI digital output interface
16-bit data output
Sleep-to-wakeup function
10000 g high-shock survivability

H3LIS331DLTR Datasheet
