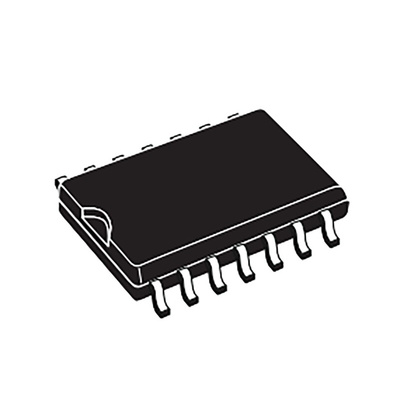

STMicroelectronics HCF4093YM013TR Surface Mount Counter, 14-Pin SOIC

The HCF4093 is a monolithic integrated circuit fabricated in metal oxide semiconductor technology available in the SO14 package.
The HCF4093 consists of four Schmitt trigger circuits. Each circuit function has a 2-input NAND gate with Schmitt trigger action on both inputs. The gate switches at different points for positive and negative going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is defined as hysteresis voltage (VH).

Schmitt trigger action on each input with no external components
Hysteresis voltage typically 0.9 V at VDD = 5 V and 2.3 V at VDD =10 V
Noise immunity greater than 50 % of VDD ( typ.)
No limit on input rise and fall times
Quiescent current specified up to 20 V
Standardized symmetrical output characteristics
5 V, 10 V, and 15 V parametric ratings
Input leakage current II= 100 nA (max.) at VDD = 18 V and TA= 25 °C
100 % tested for quiescent current
ESD performance
HBM: 2 kV
MM: 200 V
CDM: 1 kV
