STMicroelectronics L6234PD013TR, BLDC 3-phase AC Motor Driver 20-Pin, PowerSO

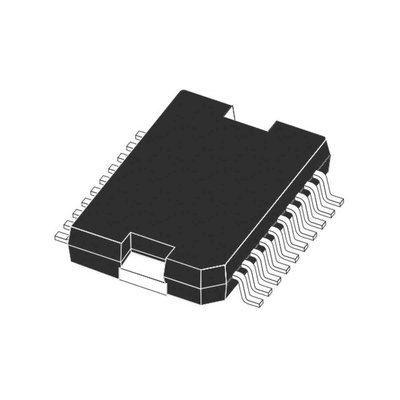

The L6234 is a triple half bridge to drive a brushless DC motor. It is realized in BCDmultipower technology which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The output DMOS transistors can sustain a very high current due to the fact that the DMOS structure is not affected by the second breakdown effect, the RMS maximum current is practically limited by the dissipation capability of the package. All the logic inputs are TTL, CMOS and μP compatible. Each channel is controlled by two separate logic inputs. The L6234 device is available in a 20-pin PowerSO20 package.

L6234PD013TR Datasheet
