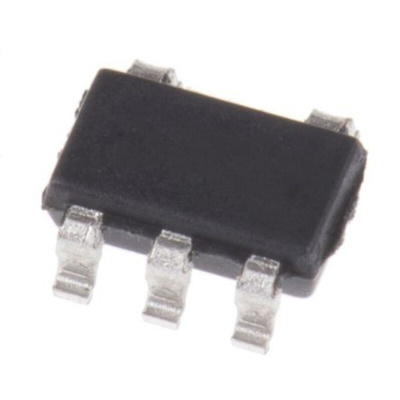

LMV331ILT STMicroelectronics, Comparator, Open Drain O/P, 2.7 → 5 V 5-Pin SOT-23, Компаратор

The LMV331, LMV393 and LMV339 are the single/dual/quad and low voltage versions of the industry standard LM339 and LM393. They can operate with a supply voltage ranging from 2.7 to 5 V, and exhibit a lower current consumption than their predecessors LM339 and LM393. These devices are a perfect choice for low-voltage applications.
The LMV3xx are available in tiny packages, making them ideal for applications where space saving is a constraint.
The devices are designed to operate in the temperature range of -40°C to +85°C and are suitable for a variety of applications.

Supply operation from 2.7 to 5 V
Low current consumption: 20 μA
Input common mode range includes ground
Wide temperature range: -40°C to +85°C
Low output saturation voltage
Propagation delay: 200 ns
Open drain output
ESD tolerance: 2 kV HBM / 200 V MM
SMD packages

LMV331ILT Datasheet
