P2RFZ-05-E, Omron P2RFZ 250V ac Surface Mount Relay Socket, Контактная колодка

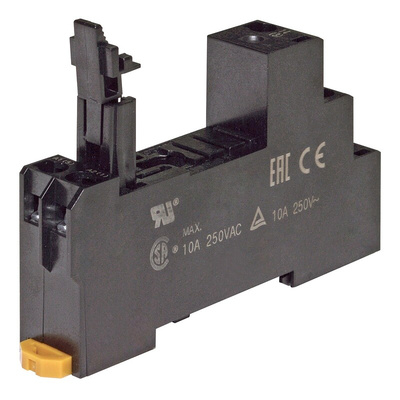

OMRON Relay Socket, 79 (H) x 15.5 (W) x 61mm (D), Screw Terminals - P2RFZ Series - P2RFZ-05-E

Keen to mount a relay in a flash? Get the job done with this relay socket from OMRON. You attach it directly to a circuit board and simply clip in your relay, so assembly is hassle-free. As the socket acts as an electrical interface between a PCB and your switching mechanism, there's no need for fiddly rewiring when installing a new switch. This unit is designed for use with OMRON's G2R range of general-purpose industrial power relays, which let you switch high-current devices such as lighting and HVAC systems.

Features & Benefits

• Maximises space in your setup, thanks to compact dimensions of 79 (H) x 15.5 (W) x 61mm (D)
• Choice of DIN rail or surface mounting to suit your setup
• Includes a release lever for quick and tool-free relay removal

Applications

• Robotics systems
• Pharmaceutical industry
• Industrial engineering

How do I wire this relay socket?

The unit has screw terminals, so it's a cinch to wire using only a screwdriver. As these terminals hold conductors firmly, there's no need to worry about your connections coming loose in heavy-duty environments.

Datasheet G2R_S General-Purpose Relay
