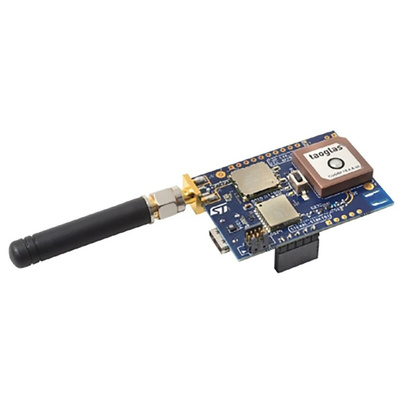

STMicroelectronics STEVAL-STRKT01 RF Transceiver

The STEVAL-STRKT01 LoRa® IoT tracker is designed and optimized to implement
the latest technologies in IoT tracker applications such as asset, people and animal
tracking as well as fleet management.
The evaluation board simplifies prototyping, evaluation and development of tracker
innovative solutions. It comes with comprehensive software, firmware libraries, tools,
battery, cables and plastic case.
Thanks to the STM32L072CZ embedded in the CMWX1ZZABZ-091 LoRa® module
(by Murata), the STEVAL-STRKT01 allows acquiring position, managing geofence
and data logging from Teseo-LIV3F GNSS module and monitoring motion
(LIS2DW12) and environmental (HTS221 and LPS22HB) sensors.
The board also transmits and receives data, configurations and events to and from
the cloud over a LoRaWAN™ network, or stores data locally in the M95M02-DR
EEPROM.
The STEVAL-STRKT01 is a LiPo battery operated solution and implements low
power strategies thanks to an enhanced power/battery management design, based
on the STBC02 battery charger and the ST1PS01 step-down converter, to ensure
long battery autonomy. The STUSB1600A addresses 5 V USB Type-C port
management and offers high voltage protection against short circuits.

STEVAL-STRKT01 - Datasheet
