Parker Analogue Diagnostic Monitor S.850019, Series System 20 Oil, Water

Hydraulic System 20 Oil Calibrated Monitor

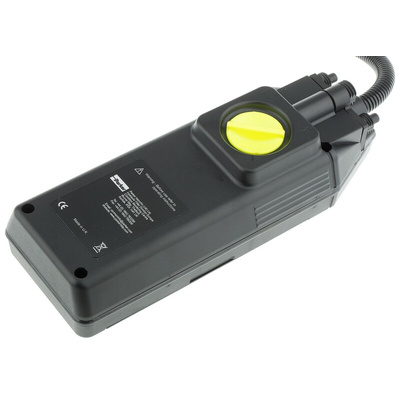

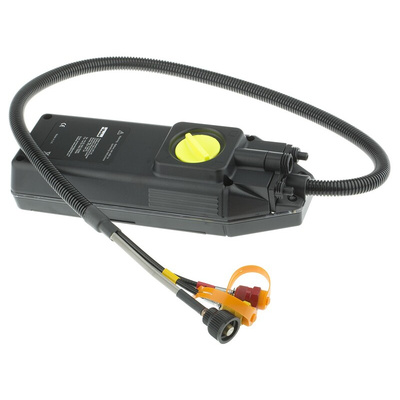

The System 20 oil calibrated monitor is hand held and designed as a sealed assembly. There is no routine maintenance or adjustment required. The monitor has three day-glow dial gauges and protective hinged cover.

Features and Benefits

•No power source is required
•A viscosity chart is provided for mineral oil applications where monitoring is required at variable viscosities
•Instruction leaflet included

Diagnostic Equipment - System 20

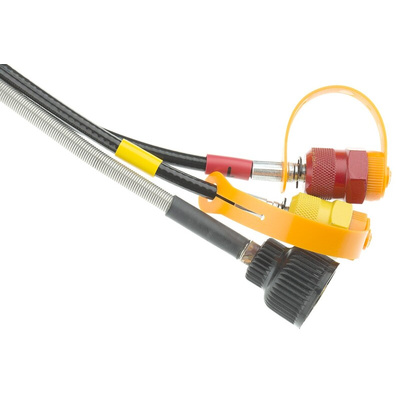

System 20 condition monitoring comprising a calibrated analogue monitor designed to connect to an inline sensor to provide the user with an accurate and repeatable analysis of system flow, pressure and temperature simultaneously, without having to stop the machine. The system is compatible with all mineral oils, water and water / oil emulsions up to a maximum working pressure of 420 bar. The sensors are capable of accepting reverse flow to an accuracy of ±5% full scale deflection.

Specification

User Instructions
