HD202A, StarTech.com Startech 4 port HDMI to HDMI, RCA, Toslink Video Converter, 4096 x 2160 Maximum Resolution

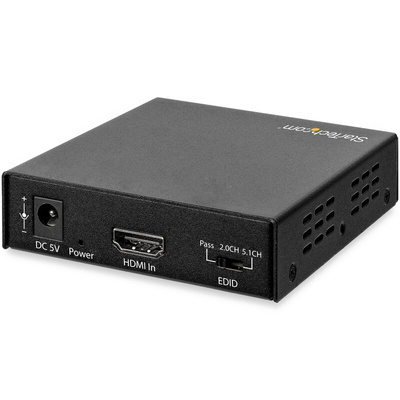

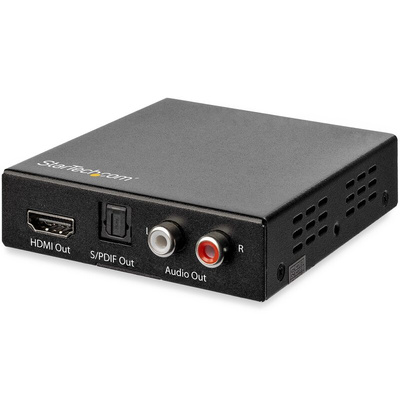

StarTech.com HDMI Audio Extractor, 4K HD, 60Hz - HD202A

Ensure your audio quality matches your visuals with this extractor from StarTech.com. The handy box separates the audio from your video streams and diverts it to your choice of speaker. Thanks to the 3.5mm RCA (Radio Corporation of America) and S/PDIF (standard optical fibre) ports it works with both digital and analogue audio devices found in domestic, commercial and industrial settings.

Astounding Resolution

Quick set-upPlug-and-play style device with no software or apps to download, so you can install it simply and swiftly.
High performanceThe HDMI (high-definition multimedia interface) ports support a 4K and 60Hz screen resolution to give you high-quality pictures and graphics.
Easy device integrationUniversal digital and analogue ports help you integrate newer devices with older ones. For example, Blu-ray players can be used with analogue stereo speakers, meaning you can continue to use your dated equipment.

• Comes with brackets and screws for easy mounting on desks or entertainment units• Dimensions of 90 (length) x 80mm (width) mean it's a compact solution for desks and workstations• Labelled ports make it easy to use

FAQs

How is this video converter powered?The converter comes supplied with the AC (alternating current) power adapter you need to use it.

Superb Sound

StarTech.com know that some customers want to have the high performing audio to go with their UHD TV. That’s why they’ve integrated EDID (Extended Display Identification Data) management capabilities that support 2-channel, 5.1-channel and pass-through audio modes.

The way this extractor de-embeds audio is by isolating the audio signals from either your Blu-Ray player or games console, and then channels it into the audio output port. Connect digital stereo or analog speakers to the extractor and hear superb sound in an instant.

For users wanting to implement a 3.5mm audio device, this de-embedder is HDCP compliant with dual RCA composite adapters. Meaning users have the flexibility to connect up their perfect setup with any of these three adapters: MU6MMRCA, MU3MMRCA or MUFMRCA.

Plug-and-Play

A great feature of the HDMI2VGA is that it doesn't require any additional software to be downloaded to use it. Plus, it comes equipped with a universal power adapter to eliminate signal drops in transfer signals. With no set up required, it's incredibly easy to use, just plug in and play.

Features and Benefits

•Small footprint
•1x HDMI female output port
•1x HDMI female input port
•Supports RCA equipped audio devices
•Supports 2-channel and 5.1-channel
•Supports pass-through audio modes
•Maximum resolution of 4k @ 60Hz
•Connect to 3.5mm equipped audio devices
•HDMI 2.0
•Max bandwidth of 18Gbps
•Supports HDR

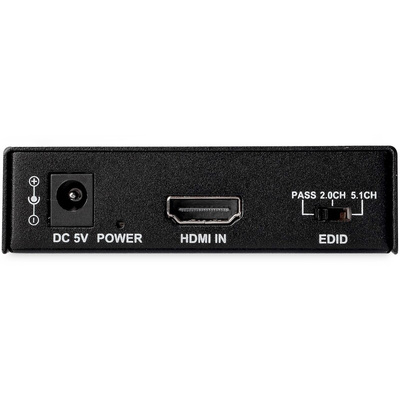

•Integrated EDID management capabilities

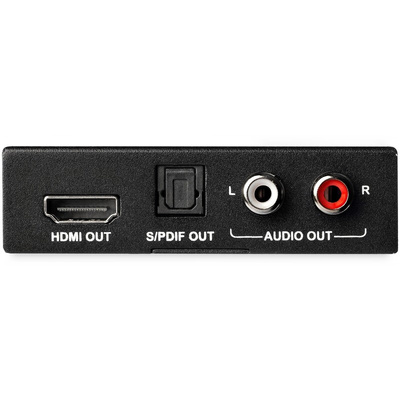

•1x RCA audio output
•1x Toslink female output
•Desk mountable

What are the applications for this audio extractor?

This device can be used in a classroom where analogue equipment is still utilised. It can also be used in a boardroom to route to dedicated audio equipment. Users can make use of this extractor at home too for their home stereo system or workstation.

How does an HDMI audio extractor work?

This converter works by isolating and then channelling the audio signals to a dedicated audio port.

What is an HDMI audio extractor?

An HDMI audio extractor is a device which separates audio from video.

How to setup an HDMI audio extractor?

First, plug both input and output HDMI cables into the female ports. Then plug your left and right wires into the white and red input sockets. Make sure the converter is connected to a power source and you’re ready to go.

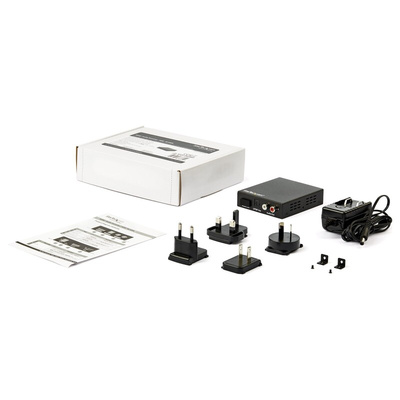

What’s in the box?

•1x HDMI audio extractor
•1x Power adapter (NA, EU, UK, ANZ)
•2x Mounting brackets
•2x Screws

Datasheet HD202A

Manual - HD202A
