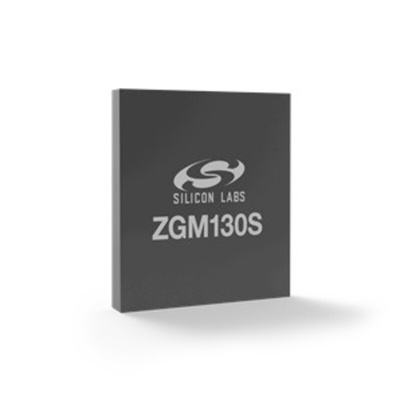

Silicon Labs ZGM130S037HGN2 RF Transceiver, 64-Pin LGA

The Silicon Labs Z-Wave 700 SiP Module, ZGM130S, is a fully integrated Z-Wave module, enabling rapid development of Z-Wave solutions. It is an ideal solution for energy-friendly smart home control applications such as motion sensors, door/window sensors, access control, appliance control, building automation, energy management, lighting, and security networks in the “Internet of Things”. Built with low-power Gecko technology, which includes innovative low energy techniques, fast wake-up times and energy saving modes, the ZGM130S reduces overall pow- er consumption and maximizes battery life. The module contains a native security stack and a comprehensive set of hardware peripherals usable for advanced device functionality, and offers 64 kB of flash memory for OEM applications.

TX power up to 13 dBm
RX sensitivity @ 100 kbps: -97.5 dBm
Range: up to 100 meters
9.8 mA RX current at 100 kbps, GFSK,868 MHz
13.3 mA TX current at 0 dBm outputpower at 908 MHz
0.8 μA EM4H current (128 Byte RAMretention and RTCC running from LFRCO)
32-bit ARM® Cortex®-M4 core at 39 MHz
Flash memory: 512 kB (64 kB Application)
RAM: 64 kB (8 kB Application)
Autonomous Hardware Crypto Accelerator and Random Number Generator
Integrated DC-DC Converter
Robust peripheral set and up to 32 GPIO
External SAW filter optional
