BCM943364WCD1_EVB, Cypress Semiconductor Evaluation And Development Kit BCM43364 for WICED™ Wi-Fi Software Development 2.4GHz

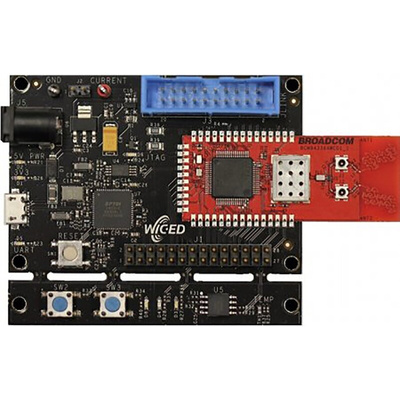

The Cypress BCM943364WCD1_EVB kit includes a BCM943364WCD1 SIP module mounted on a full-featured USB-based evaluation and development board that is fully compatible with the WICED™ Wi-Fi Software Development Kit (SDK). The onboard SIP module leverages the BCM43364 WiFi device that provides a 2.4 GHz WLAN IEEE 802.11b/g/n MAC/baseband/radio. In addition, the SIP module integrates a power amplifier (PA) that meets the output power requirements of most handheld systems, a low-noise amplifier (LNA) for best-in-class receiver sensitivity, and an internal transmit/receive (iTR) RF switch, further reducing the overall solution cost and printed circuit board area. The BCM943364WCD1_EVB also includes an on-board STM32F411 32-bit Arm microcontroller, and is provisioned to support the authentication chip utilized by Apple’s HomeKit offering.

The BCM943364WCD1_EVB is a self-contained evaluation and debug kit that can be powered from a wired USB (+5V) connection or a 5V DC jack (not provided with the kit)
The USB interface enumerates as both a USB-JTAG (Program and Debug) and USB-UART (Serial Command Interface)
Support for ThreadX and FreeRTOS Real-Time Operating Systems (RTOS), and NetX/NetXDuo IPv4/IPv6 and LwIP IPv4 TCP/IP network stack implementations via WICED™ WIFI SDK
Open On Chip Debugger (Open OCD)
