RS PRO Polypropylene Film Capacitor, 440V ac, ±10%, 25μF, Screw Mount, Конденсатор

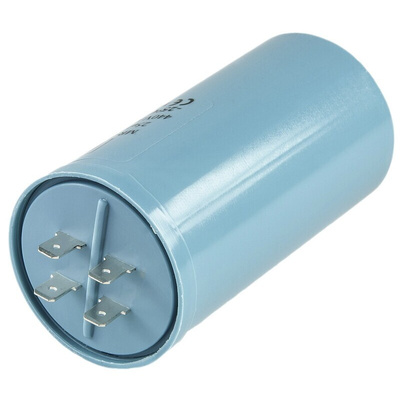

RS PRO 25 μF Polypropylene Capacitor PP 440 V AC ±10% Tolerance Screw Mount

Need a metallised, motor-run capacitor? This one from RS PRO is made of durable polypropylene for use in demanding applications. It's ideal for pumps for domestic appliances or high-power and high-frequency systems such as induction heaters. You can also use it as an AC capacitor for electrical distribution.


The capacitor is encapsulated in a non-flammable plastic case that conforms to the Underwriters Laboratories' UL94V0 flammability standard. This means there's minimal risk of flammable combustion. It also has excellent self-healing properties as the capacitor clears a fault area where a short has occurred after a breakdown.


This part meets Restriction of Hazardous Substances (RoHS) standards, meaning it contains only minimal amounts of any harmful materials. It also complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 regulations for electrostatic discharge (ESD), so it will keep you and your workspace safe from hazardous discharge.

Features and Benefits

• Capacitance of 25 μF


• Polypropylene (PP) dielectric material family


• Dimensions of 50 (diameter) x 98 (length) mm


• Dissipation factor of less than 0.15%


• Maximum operating temperature of +85°C


• Minimum operating temperature of -25 °C


• Screw mounting type


• Tolerance of ±10%


• Voltage of 440 V AC

Approvals

7777

RS Pro Datasheet
