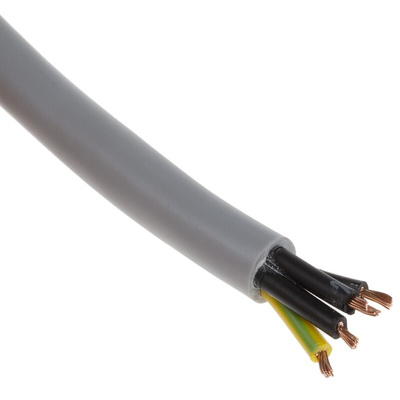

RS PRO Control Cable, 4 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath

RS PRO 4 Core YY Control Cable, 0.75 mm², 50 m, Unscreened

This RS PRO four-core cable measures, controls and regulates the distribution of power and data signals. You can use it to link your fixed and mobile equipment like laptops or smart televisions.
Polyvinyl chloride (PVC) sheaths increase safety by insulating the cores and preventing short circuits, which may cause fires. The cable consists of plain electrolytic fine copper wire strands that optimise the transfer of electricity and data so your equipment and applications operate without interruptions. Easily bend and manipulate this flexible cable to reach all sockets and objects.
You can be assured this product contains only minimal amounts of any harmful materials as it's Restriction of Hazardous Substances (RoHS) certified. Use this cable indoors to run conveyors and computers.

Features and Benefits

• Multicore cable shape
• Annealed copper conductor material
• 24 core strands of 0.2 mm
• Cross-sectional area of 0.75 mm²
• Earth cable
• PVC insulation material
• Length of 50 m
• Operating temperature range of -15°C to +70°C
• Minimum bend radius of 6 x Diameter
• Four cores
• Outer diameter of 7.7 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• BS (British Standards) EN 50525 standards met
• Voltage rating of 300/500 V
