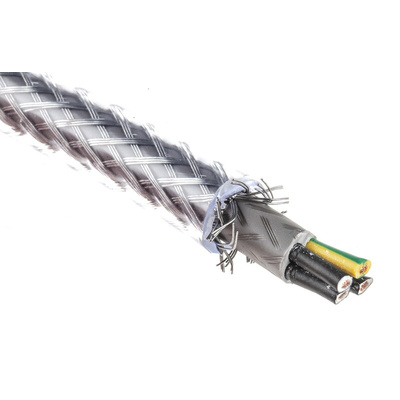

RS PRO Control Cable, 4 Cores, 0.75 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 4 Core SY Control Cable 0.75 mm², 50 m, Screened

In need of a robust control cable? This RS PRO four-core SY cable is designed to withstand high levels of mechanical stress and its core is made of annulated copper which retains flexibility as well as strength. It's screened by a wire braid made of galvanised steel, protecting the cable from any electromagnetic interference affecting it.
Further protecting the cable are layers of PVC (polyvinyl chloride) which is resistant to chemical damage, oils and mechanical damage so you can confidently use this cable under demanding conditions. If any damage does occur, it will be instantly visible thanks to the transparent top sheath.
This cable is appropriate for internal dry, damp or wet environments. It's also well suited for use in industrial settings, such as assembly or production lines, or the construction and building industry.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 24 core strands of 0.2 mm
• Cross-sectional area of 0.75 mm²
• Earth cable
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Four cores
• Outer diameter of 10.4 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Conforms to BS EN 50525 standards
• Voltage rating of 300/500 V
