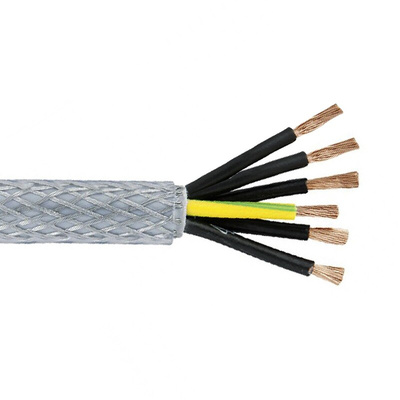

RS PRO Control Cable, 7 Cores, 1.5 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 7 Core SY Control Cable 1.5 mm², 50 m, Screened

This RS PRO seven-core SY control cable is the ideal cable to use in harsh conditions. The galvanised steel screen wire shielding makes it well-protected from electromagnetic interference and mechanical damage.
The cables are insulated and sheathed by protective PVC (polyvinyl chloride). This prevents oils, acids and heat from affecting the cable, ensuring that it stays safe and works at full effectiveness.
The cable's flexibility hasn't been compromised by its armouring. It's made with annealed copper for improved durability and can be safely put to work in internal dry, damp or wet environments.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 30 core strands of 0.25 mm
• Cross-sectional area of 1.5 mm²
• Earth cable
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Seven cores
• Outer diameter of 13 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Complies with BS EN 50525 standards
• Voltage rating of 300/500 V
