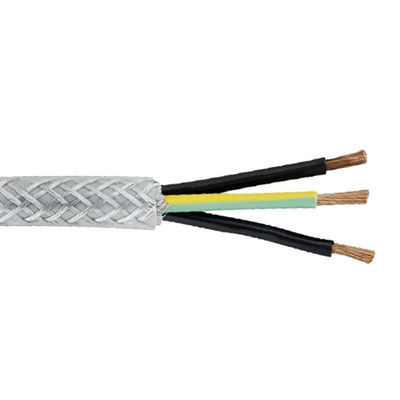

RS PRO Control Cable, 3 Cores, 4 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 3 Core SY Control Cable 4 mm², 50 m, Screened

Use this RS PRO three-core SY control cable to manage your electrical systems in harsh conditions. Fit the cable into hard to reach ports and outlets with the flexible cable design.
The wire is encased in a galvanised steel wire braid (GSWB) to stop rust developing and connection problems. If connection issues do occur, the transparent polyvinyl chloride (PVC) sheath will allow you to locate precisely if there is any wear and tear on the cable.
Any water drips or spikes in temperature are resisted by the layered and durable construction of the cable. You can use it in automation industries such as conveyors, assemblies and production lines.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 56 core strands of 0.3 mm
• Cross-sectional area of 4 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• Three cores
• Outer diameter of 13 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Conforms to BS EN 50525 standards
• Voltage rating of 300/500 V
