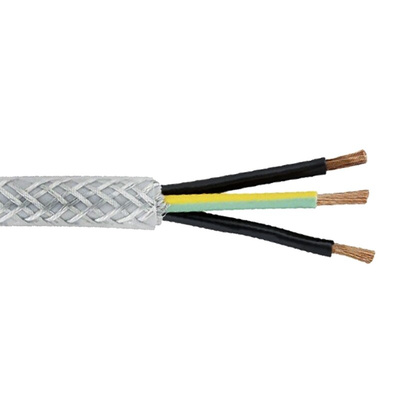

RS PRO Control Cable, 3 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 3 Core SY Control Cable 1 mm², 50 m, Screened

Let this three-core SY cable from RS PRO keep your electrical system safely controlled in set-ups conducive to high stress. The cable’s malleable design allows you to shape it to fit your outlet, however challenging the space may be.
Galvanised steel wire braiding (GSWB) shields the wire from corrosion risks that may damage its regulation capabilities. The transparent polyvinyl chloride (PVC) sheath lets you easily see when any abrasion occurs so you can fix the problem.
The cable is suitable for use in internal settings both wet and dry. Its durable design can bear up against prolonged proximity to oil-water mixtures.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 32 core strands of 0.2 mm
• Cross-sectional area of 1 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• Three cores
• Outer diameter of 10.3 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Complies with BS EN 50525 standards
• Voltage rating of 300/500 V
