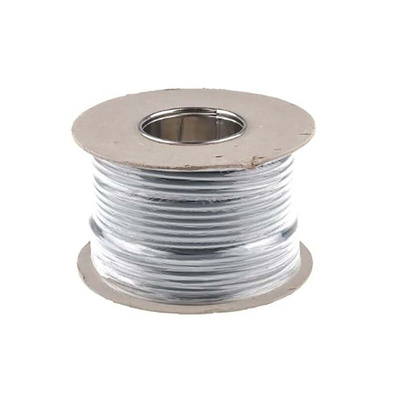

RS PRO Control Cable, 5 Cores, 1.5 mm², YY, Unscreened, 50m, Grey PVC Sheath

RS PRO 5 Core YY Control Cable, 1.5 mm², 50 m, Unscreened

This versatile RS PRO control cable measures, controls and regulates the distribution of power and analogue or digital signals. Use this item to link electronic equipment such as computers and conveyors.
The polyvinyl chloride (PVC) sheaths that insulate each of the five cores make them resistant to heat, preventing short circuits that can cause fires. You can bend and flex the annealed copper cable without the risk of flaking or breaking, ensuring an uninterrupted transfer of power and data signals between devices.
This product meets Restriction of Hazardous Substances (RoHS) standards, meaning it contains minimal levels of any potentially harmful materials. Use this product under dry or moist conditions in indoor settings such as factories.

Features and Benefits

• Multicore cable shape
• Annealed copper conductor material
• 30 core strands of 0.25 mm
• Cross-sectional area of 1.5 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Five cores
• Outer diameter of 9.6 mm
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
