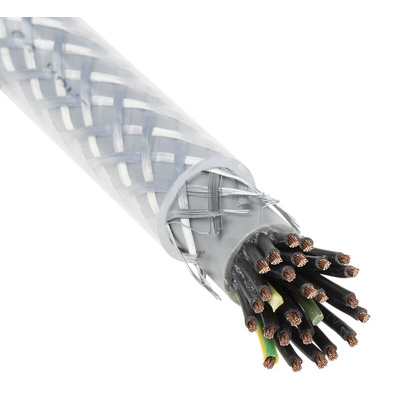

RS PRO Control Cable, 25 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 25 Core SY Control Cable 1 mm², 50 m, Screened

Install this RS PRO 25-core SY control cable to manage your electrical units in challenging power settings. Bend the flexible cable around to secure it into your awkwardly positioned connection channels.
The cable is armoured with a galvanised steel wire braid (GSWB) to resist corrosion. Any wear that the cable sustains is quickly detectable through the transparent polyvinyl chloride (PVC) sheath to help you with repairs.
The cable can stay optimal, even when exposed to excessively damp or dry conditions, as it's layered to last. Process automation equipment such as instrumentation and computer units are commonly applied with this cable.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 32 core strands of 0.2 mm
• Cross-sectional area of 1 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• 25 cores
• Outer diameter of 19.7 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Conforms to BS EN 50525 standards
• Voltage rating of 300/500 V
