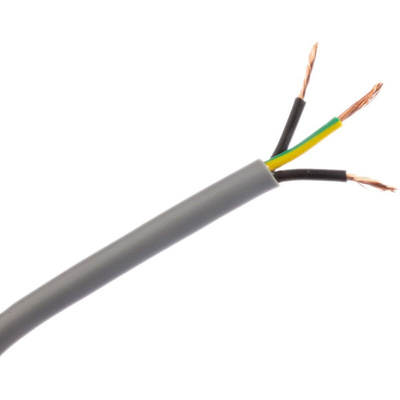

RS PRO Control Cable, 3 Cores, 1 mm², YY, Unscreened, 50m, Grey PVC Sheath

RS PRO 3 Core YY Control Cable, 1 mm², 50 m, Unscreened

This RS PRO multi-core control cable simultaneously transfers power and relays data signals. Use it for connections between your fixed and mobile equipment to run automated processes.
The three cores are insulated with polyvinyl chloride (PVC), which improves electrical performance and makes the product heat-resistant. This helps it to prevent faulty connections that can cause fires. You can bend the cable without worrying about interrupted or weakened data transfer thanks to the flexible annealed copper wires.
This item complies with the Restriction of Hazardous Substances (RoHS) requirements and so contains only minimal levels of any harmful materials. It's suitable for use in indoor and controlled outdoor settings.

Features and Benefits

• Multicore cable shape
• Annealed copper conductor material
• 32 core strands of 0.2 mm
• Cross-sectional area of 1 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Three cores
• Outer diameter of 7.6 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
